AFT7 chart Indicators for technical analysis & algorithmic systematic trading
AFT7 indicators provide an unparalleled level of precision, sophistication and ease of use when the basics are understood of how to use the advanced features for configuration and settings templates usage. AFT7 indicators fall into 2 groups those use for technical and those used for Signals - see AFT7 Signals Indicators
Related Articles
- NinjaTrader 7
- NinjaTrader 7 AFT7 day trading futures system overview of components
- AFT7 Session Open Breakout Trading Basics
- AFT7 Signals Indicators
Article Sections
- AFT7 Indicator Basics
- Accessing AFT Indicators
- Property Grid view - Parameters
- Set Indicator Defaults, Look and Feel
- How to Load AFT7 indicator templates
- Updating & previewing templates

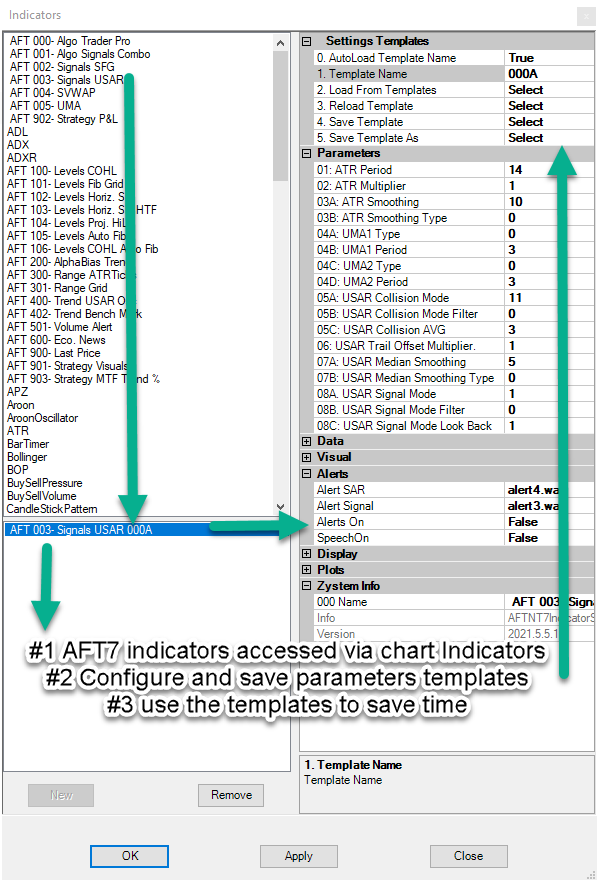

AFT7 Indicator Basics
- AFT7 indicators are accessed and are used the same way as any NinjaTrader Indicator
- AFT7 indicators provide enhanced settings features, templates to create read update and delete
- AFT7 Indicator Default settings can be saved to persist look and feel and a default setting via NinjaTrader Indicators list the same as any other indicator
- AFT7 Indicator Templates can be accessed from the NinjaTrader indicator list parameter view
- AFT7 Indicator AFT000 Algo Pro Trader has an additional configuration trade manager view for settings -see
- AFT7 Indicator templates can be used to configure on chart or within another indicator or strategy
- AFT7 Indicator template settings save time, once you have created and saved a template for any indicator you can reuse that in many places to save hours of time.
Accessing AFT7 Indicators
The NinjaTrader 7 Indicators window is used to add, remove and edit all indicators within a chart.

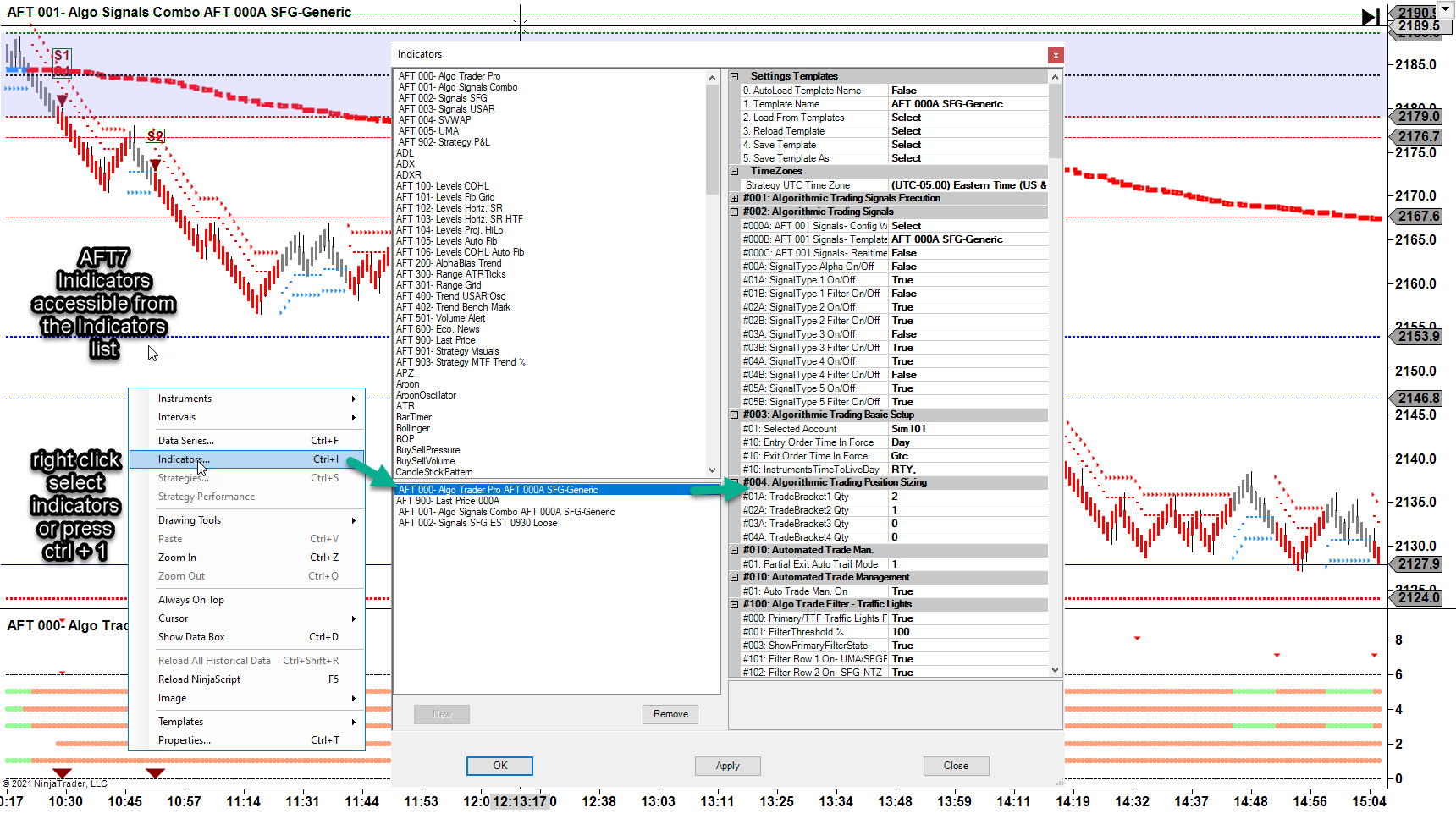

Accessing the Indicators Window
There are multiple ways to access the Indicators window see
- NinjaTrader 7 - working with indicators
-
Within a select active chart window
- CTRl + I
- Right click > Indicators
- Indicators Menu
Indicator Property Grid view - Parameters

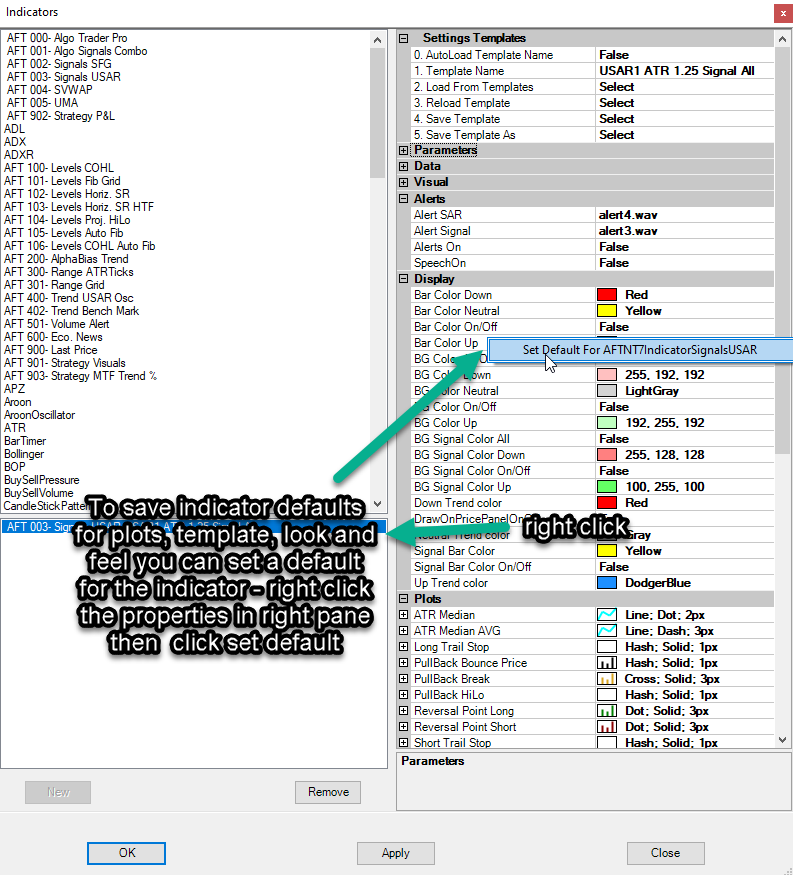

Set Indicator Defaults, Look and Feel
To save indicator defaults for plots, AFT7 indicator template, look and feel you can set a default for the indicator - right click the properties in right pane then click set default.

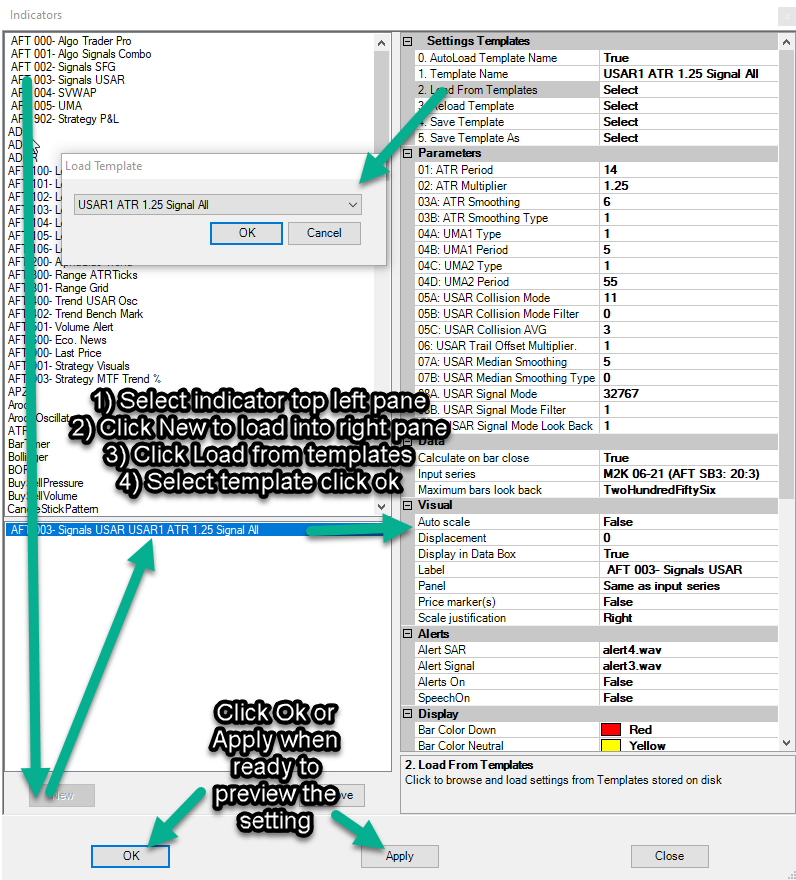

How to Load a AFT7 indicator settings template
- Select indicator top left pane
- Click New to load into right pane
- Click Load from templates
- Select template click ok
- When ready to view Click ok or Apply
Updating & previewing AFT7 indicator settings templates

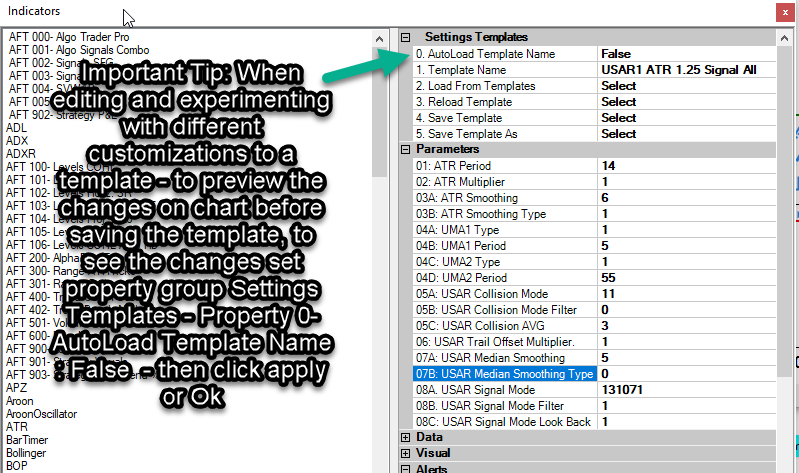

Important Tip: AutoLoad Template
When editing and experimenting with different customizations to a template - to preview the changes on chart before saving the template, to see the changes set property group Settings Templates - Property 0- AutoLoad Template Name : False then click Ok or Apply to see on chart.
When you are ready to save and use the template on a chart or elsewhere if you want the indicator to reload its settings then switch 0- AutoLoad Template: True

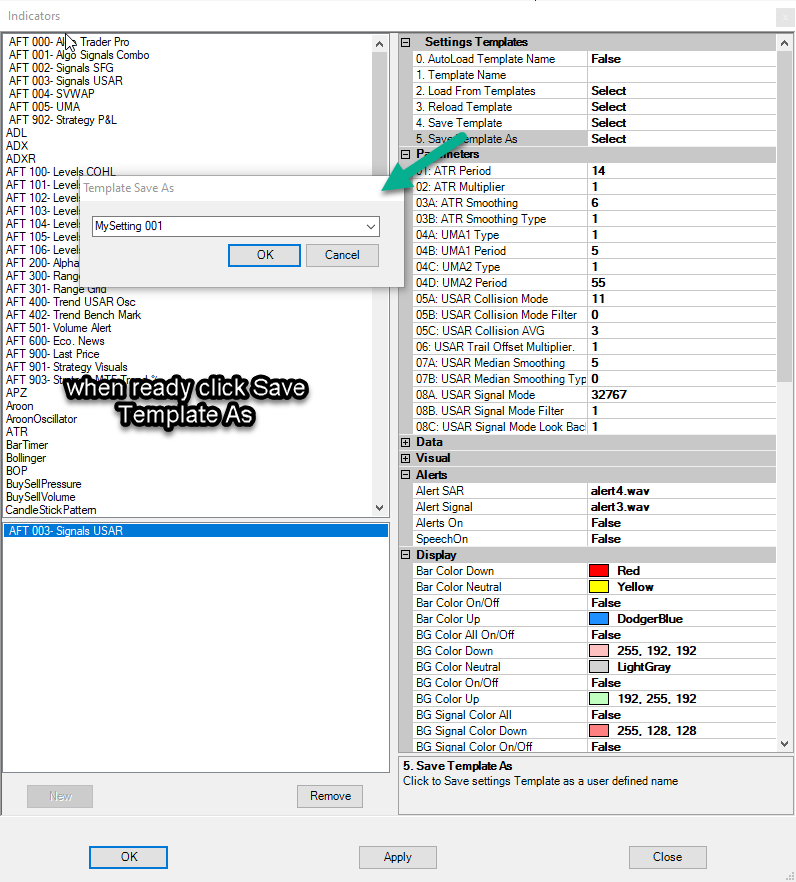

How to save AFT7 Indicator Template
when ready to save simply click save as - remember the important tip 0- AutoLoad Template above
AFT7 indicators used within another indicator
AFT7 indicator AFT000 and AFT001 both use other AFT7 indicators for their rules - "hosted indicators" , in doing so they allow you to use the hosted indicator templates to easy load and configure.

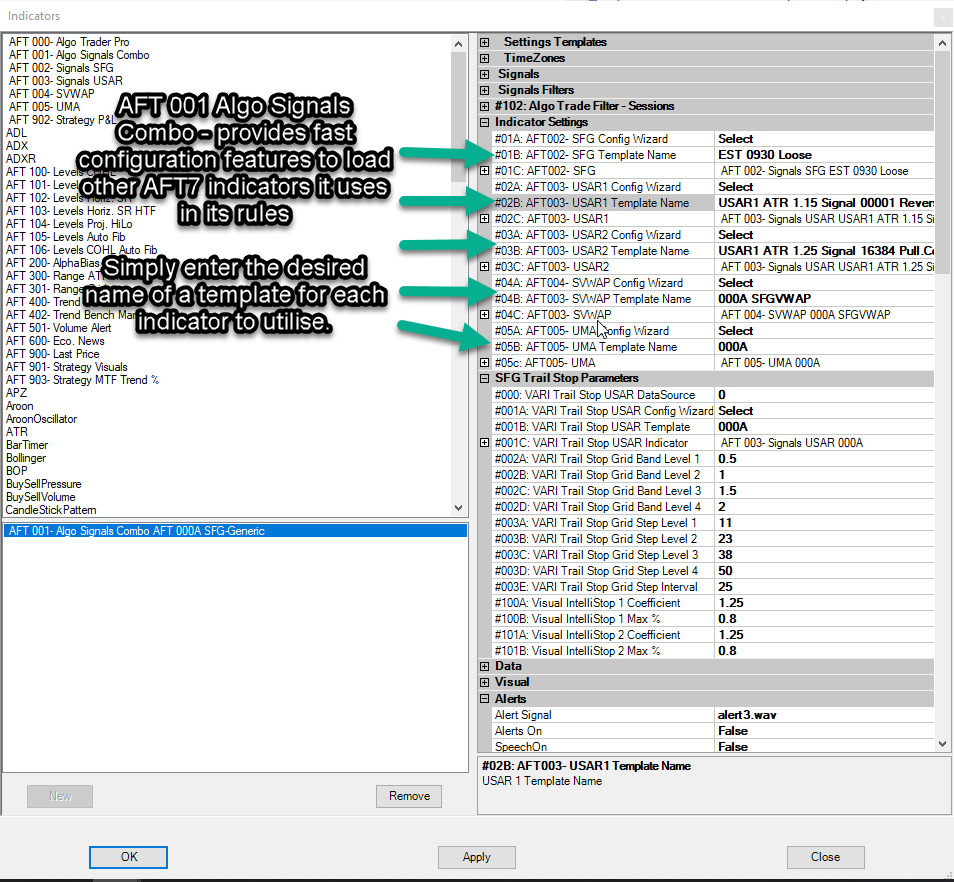

Pictured is the indicator settings group which allows fast configuration using templates for multiple AFT7 indicators used by AFT7001 Algo Signals Combo.
For more details on Signals Indicators visit AFT7 Signals Indicators trading and configuration
